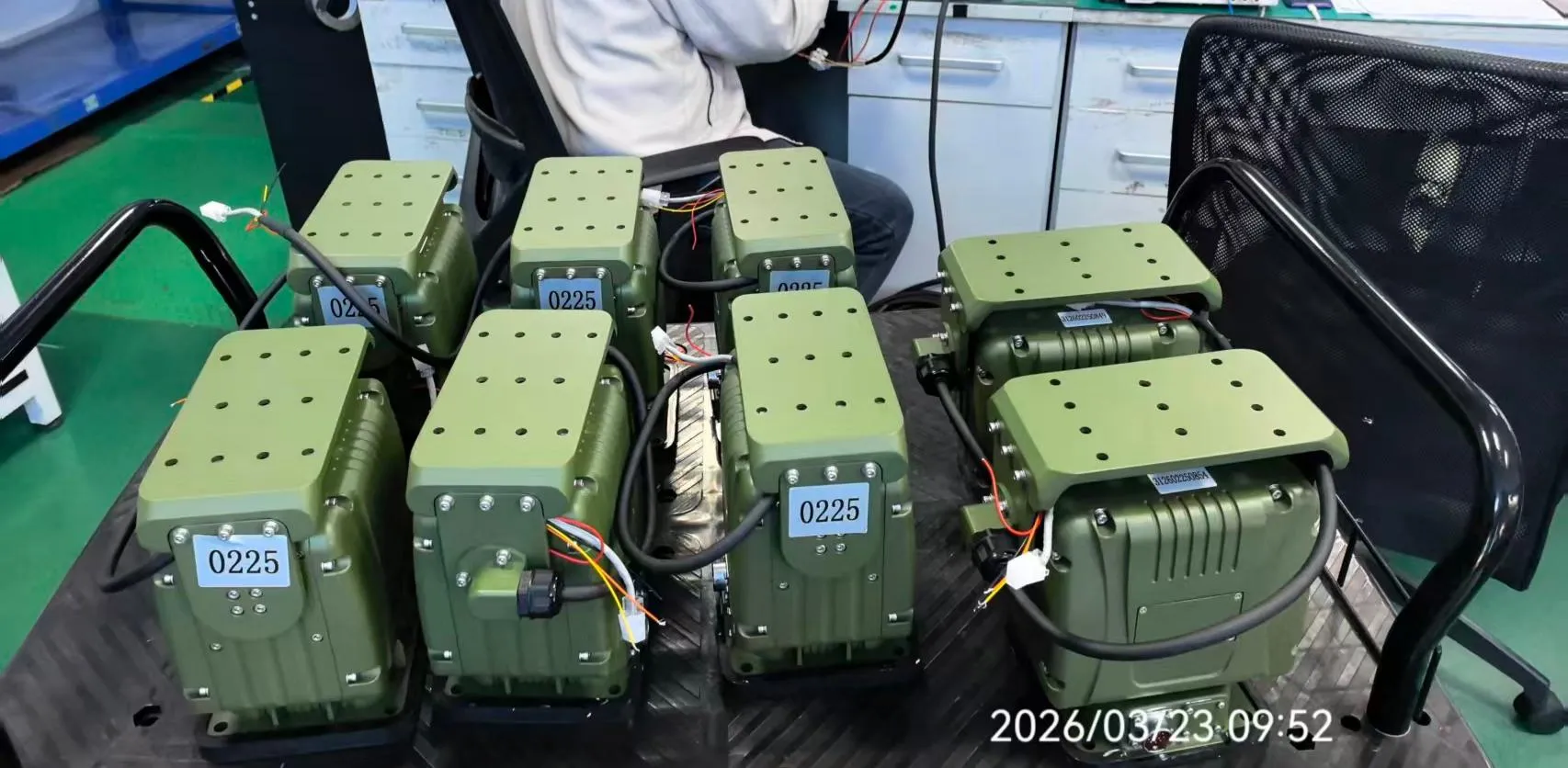

Bit-cctv industrial Pan Tilt Mount BIT-PT8120 adopts a high-torque turbine worm transmission system, providing a heavy load capacity of up to 120kg and a 0.1-degree repeated positioning accuracy. It is specially designed for long-distance monitoring and harsh outdoor environment, ensuring the stable operation of the security system all day long and can be purchased in batches.
Max. Load Capacity
120kg
Drive Mode
Stepper Motor + Worm Gear
Tilt Rotation Angle
-45 degree ~ 45 degree
Using high-strength worm gear transmission structure, compared with ordinary gear transmission, self-locking capacity increased by 85%. The Pan Tilt Mount can stably carry a 120kg camera and telephoto lens assembly to maintain image stability without slippage in high wind or vibration environments.
Built-in high-precision encoder and stepper motor drive, to achieve 0.005 degrees to 15 degrees per second stepless variable speed adjustment. The repeated positioning accuracy is strictly controlled within 0.1 degrees to ensure that the preset position finger-back deviation does not exceed 5% of the center of the picture in telephoto monitoring scenes above 2000 meters.
The fuselage adopts an integrated die-casting aluminum alloy process, combined with double-layer powder spraying technology, and passes a 96-hour neutral salt spray test. The Pan Tilt Mount has IP66 protection and can operate continuously in extreme temperature difference environments from minus 35 degrees Celsius to 65 degrees Celsius.
Supports storage of 255 preset bits and 8 automatic cruise routes. Users can customize the residence time and scanning speed of each route to realize 24-hour unattended intelligent area coverage, and the effective monitoring range is 300 higher than that of fixed supports.
Fully compatible with Pelco-D, Pelco-P and other industry standard control protocols, support RS485 communication interface. The Pan Tilt Mount provides seamless access to mainstream security integration platforms without the need for additional protocol converters, reducing the complexity and cost of system integration.
Built-in 4000V lightning protection surge protection circuit, effectively prevent lightning damage to equipment. Support DC48V wide voltage input, voltage fluctuation tolerance of plus or minus 10%, adapt to the unstable power supply environment of field base stations or industrial parks.
| Parameter name | Specifications |
| Core keywords | Pan Tilt Mount |
| Maximum load (top) | 120 kg |
| Horizontal rotation range | Continuous rotation from 0 degrees to 360 degrees |
| Vertical rotation range | -45 degrees to +45 degrees |
| Horizontal rotation speed | 0.005 degrees/second to 15 degrees/second (adjustable) |
| Vertical rotation speed | 0.005 degrees/second to 7 degrees/second (adjustable) |
| Preset number of positions | 255 |
| Repeatability | ±0.1 degrees |
| Communication Protocol | Pelco-D / Pelco-P |
| Communication interface | RS-485 |
| Input voltage | DC 48V |
| Overall power consumption | 200W |
| Operating temperature | -35 degrees Celsius to 65 degrees Celsius |
| Protection level | IP66 (dustproof and waterproof) |
| Main material | High-strength aluminum alloy |
| Equipment weight | 45 kg |
.webp "Pan Tilt Mount Raw Materials and Material Description")

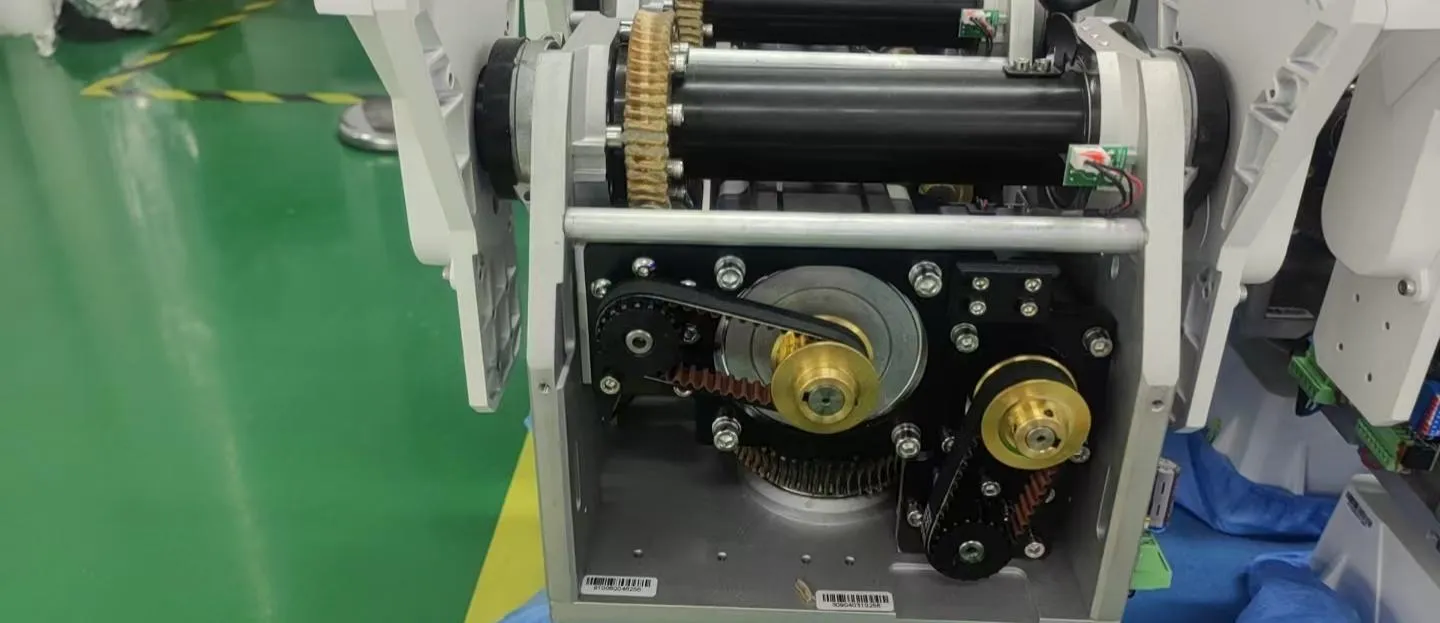

The shell body of Bit-cctv Pan Tilt Mount is made of high-strength ADC12 die-cast aluminum alloy, which has extremely high impact resistance and heat dissipation performance. The internal transmission gear is made of 40Cr alloy steel by high-frequency quenching, and the wear resistance is 3 times that of ordinary steel. All external fasteners are made of SUS304 stainless steel, completely eliminate the risk of corrosion. The seal is made of imported anti-aging silicone rubber to ensure good elasticity and sealing effect under extreme temperature difference..
The Pan Tilt Mount can carry heavy-duty fog-penetrating cameras and telephoto lenses. Its high-precision positioning and anti-wind resistance capabilities are very suitable for long-distance intrusion detection and panoramic monitoring in open areas such as borders and coastlines.
In view of the demand for illegal capture of expressways and urban trunk roads, the high-speed response and fast preset position switching function of this product can cooperate with high frame rate cameras to capture high-speed moving vehicles, ensuring that the pan-tilt can stably track when the vehicles pass through quickly.
Forest fire prevention requires a heavy thermal imaging dual-spectrum camera, and the installation location is usually in a high tower in the wild. The IP66 protection level of the product and 50kg load capacity, the perfect adaptation to the field of unattended environment fire detection needs.
.webp "Head of Industrial Park and Port Security")
In complex environments and large vibrations such as ports and large factories, the Pan Tilt Mount’s solid structure and anti-corrosion coating can resist industrial smoke and humid air, providing stable and reliable 360-degree dead angle-free monitoring for the park.
We provide professional project selection consultation to assist in the calculation of load torque. After-sales, commitment to provide 2 years of machine warranty service. Free repair or replacement of non-human faults during the warranty period, and provide lifelong 24-hour online technical support and remote debugging guidance..
Based on industrial-grade design standards, the core drive components of the Bit-cctv Pan Tilt Mount are designed to last more than 20000 hours of continuous operation. Under normal maintenance, the expected service life of the whole machine can reach 8 to 10 years. It is recommended to check the tightness of the sealing ring with the external screw every 12 months..
Yes, the maximum load of 120kg refers to the total weight that can be carried on the top of the pan-tilt. When calculating, the weight of all mounted equipment such as camera, lens, protective cover and infrared lamp needs to be added up. It is recommended to reserve a safety margin of 20%.
The product supports standard Pelco-D and Pelco-P protocols with adjustable baud rates from 2400bps to 9600bps. As long as your video recorder or keyboard controller support RS485 control and the above standard protocol, you can perfect docking control.
The Bit-cctv Pan Tilt Mount is equipped with an optional automatic temperature control heating module. When the temperature in the machine is lower than 0 degrees Celsius, the heater will automatically start to prevent the internal lubricating oil from solidifying and the window from freezing, and to ensure the normal start at minus 35 degrees Celsius.
Standard models are designed for formal installation (vertical installation). If your project requires inversion (lifting), please explain when ordering, we need to adjust the vertical limit logic through software and replace the dedicated lifting bracket to ensure safety.
This is the 1 industrial-grade heavy-duty head. The design focuses on high load and weather resistance. The motor running sound is about 55 decibels. Although it can be used indoors, it is recommended to choose our small silent series for conference room scenarios that require extremely high silence.
Due to the high power consumption of the heavy-duty gimbal, the long-distance power supply is easy to cause pressure drop. The device supports 48VDC wide voltage input. It is recommended to use a power cord with a wire diameter greater than 1.5 mm².
